PAIRED PANEL SYSTEMS

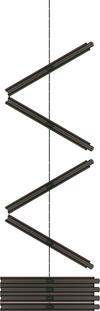

For straight-line openings that do not require multiple locations or offset storage, a Modernfold paired panel system is ideal. Quick and easy setup is possible since panels are hinged together in groups of two and move in a straight line within the opening.
Advantages of Modernfold Paired Panel Systems
- Hinged together in groups of two, facilitating quick, easy setup
- No auxiliary storage track or support required
- Economical overhead support of straight-line track
- Smooth operation
- Simple automatic bottom seals for efficient operation
- Suited for applications that require exceptional durability, acoustic control and frequent use
- Panels are designed to be stored at either or both ends of an opening
- Optimal usage in classrooms, meeting rooms or office spaces
- Optional SOSS® invisible hinge eliminates the hinge protrusion on the panel face, adding safety and a fine line appearance
- SOSS® invisible hinges and heavy duty barrel hinges feature lifetime guarantee
For top-of-the-line acoustic performance, Modernfold is proud to announce the introduction of Acousti-Seal® Encore™. Acousti-Seal® Encore™ raises the bar in operable partition acoustic performance with an unprecedented industry leading 56 STC along with automatic operation courtesy of the newly designed SureSet™ top and bottom seal mechanism.
Modernfold's Acousti-Seal® 932 is designed to solve the most basic needs of schools, churches, training facilities and office environments. For those locations where the ceiling cannot support a partition's weight, we offer the 932FS with floor-supported panels. If fire rating is a priority, the Acousti-Seal® 912 delivers with a 1-hour fire rating.
| Acousti-Seal® Model | Encore™ | 932 | 932 - Floor Supported | 912 - Fire Rated |
|---|---|---|---|---|
| Acoustics - STC | 52, 54, 56 | 28, 41, 47, 50, 52* | 28, 41, 47, 50 | 45, 50, 52 |
| Panel Thickness - Nominal | 4" (102 mm) | 3" (76 mm) | 3" (76 mm) | 3" (76 mm) |
| Operation | Paired Panel Manual | Paired Panel Manual | Paired Panel Manual | Paired Panel Manual |
| Frame | Roll Formed & Welded 14/16 Gage Steel | Roll Formed & Welded 14/16*/18 Gage Steel | Roll Formed & Welded 14/18 Gage Steel | Roll Formed & Welded 16 Gage Steel |
| Finish Options | Vinyl, Heavy Duty Vinyl, Carpet, Fabric, Customers Own Material, Full Height Marker/Tack Board, Uncovered | Vinyl, Heavy Duty Vinyl, Carpet, Fabric, Customers Own Material, Full Height Marker/Tack Board, Plastic Laminate, Wood Veneer*, Uncovered | Vinyl, Heavy Duty Vinyl, Carpet, Fabric, Customers Own Material, Full Height Marker/Tack Board, Plastic Laminate, Wood Veneer, Uncovered | Vinyl, Heavy Duty Vinyl, Carpet, Fabric, Customers Own Material, Full Height Marker Board, Uncovered |
| Skin/Face Options | Steel | Gypsum, Gypsum w/Steel Face, MR Board, MDF Board, Steel* | Gypsum, Gypsum w/Steel Face, MR Board, MDF Board | Steel |
| Maximum Opening Width | Unlimited | Unlimited | 80'-9" (24613 mm) | Unlimited |
| Maximum Height | 24' (7315 mm) | 18' (5486 mm) | 12' (3658 mm) | 18' (5486 mm) |
| Hanging Weight (lbs/sq.ft.) - STC dependent | 8 to 12 | 6 to 8 | 6 to 8 | 8 to 11 |
| Track Options | #17, #14, #30 | #17, #14, #30 | #17 with Stainless Steel Floor Track | #17, #14 |
| Pass Door Selection | Single Matching Construction | Single Hollow Metal, Single Matching Construction | Single Hollow Metal, Single Matching Construction | Single Matching Construction |
| Top/Bottom Seals | Top: Automatic Bottom: SureSet™ 2" Automatic SureSet™ 2" Manual SureSet™ 4" Automatic SureSet™ 4" Manual |
Top: Fixed Sweep Bottom: 2" Automatic 2" Manual |
Top: Fixed Sweep Bottom: Fixed Sweep |
Top: Fixed Sweep Bottom: 2" Automatic 2" Manual |
*Consult your local Modernfold distributor for custom options including: Finishes, cutouts and alternative platforms for pocket space constraints.
Acousti-Seal® Encore™, 932, 932FS and 912 come with the choice of all steel extended warranty suspension systems or aluminum track systems.
#17 for most standard applications and #14 for taller walls
